1. R5 Water-resistant Power Switch Specification.
| Manufacturer | Light Country(Changshu) Co.,LTD |
| Model | R5 water-resistant power switch |
| Electrical rating | 20A 250V AC, 20A 125V AC |
| Panel cut-out | 32*25mm |
| Mounting hole Size | 30*22mm |
| Electrical life endurance | 10,000 cycles |
| Safely approval | UL, CUL, VDE, ENEC, CQC |
| Housing color | Black |
| Lamp color | Red |
| Lamp voltage | 3V, 4V, 6V, 12V, 24V, 36V, 48V, 72V, 125V, 250V are available. |
| Housing Material | PA66/PC |
| Contacts Material | Silver alloy |
| Terminal Material | Brass with silver plated |
| Contract resistance | <20mΩ |
| Insulation resistance | >1000MΩ |
| Ambient temperature | T85/T105 |
| Fire rating | UL 94V-2. UL 94V-0. |
| Solder ability of terminal | Max 350℃ 3S, do not apply pressure to the terminal when soldering
by hand. |
2. How to order R5-7 water-resistant power switch?
Power switch is a highly customized product, different customer
might have different demand on switch function, mechanical appearance, installation method, lamp
color, lamp voltage and so on. Please refer to the normal choices
as below, and share with us your demand. We always open mind to
support customer for new design.

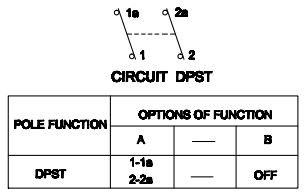

1) R5 water-resistant power switch function.
Item No. | Poles/ Throws | Rocker position |
| Left | Center | Right |
| R59 | DPST(with lamp) | ON | None | OFF |
2) R5 water-resistant power switch dimension.
3) R5 water-resistant power switch lamp circuit.
4). If R5 water-resistant power switch could not meet your demand,
please refer to below simple specification to find all our rocker
switch common types, and check if anyone could fulfill your demand,
kindly share your specification or product pictures if you need new
design support from us.
3. About us.
Light Country was founded in 1985 in Taiwan.
We dedicate on power switch and thermostat.
These parts are widely used in household appliance, electrical
products, industrial facilities, medical devices, etc.
To provide customer best service, we’re with integration of
R&D, production, sales and post-sales as well.
Our factory already got ISO9001, ISO14001, IATF16949 certificates.
Our products already got CQC, UL/CUL, VDE, TUV, SEMKO, NEMKO
certificates, comply with ROHS/REACH regulations.
We promise high quality products, timely delivery, attentive
service, effective improvements.
Thanks for your time, please feel free to contact us via below
ways,
Sales: Thomas Lee/Julie Liu
Tel: +86 138 6234 1050/+86 180 2126 2273
Mail: lixin@liangqundianzi.cn or ksd301@aliyun.com
WhatsApp: +86 158 5080 2713
