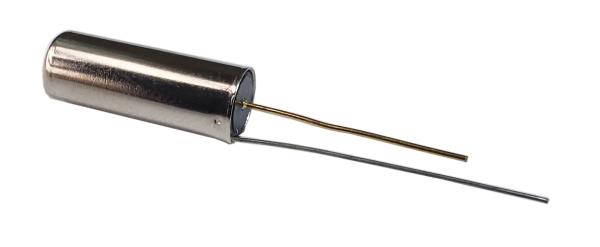

Roll Ball Switch Maximum switch rating 1-500MA/1.5-2.4VDC 1 000 000 cycles

Rolling ball vibration switch Specification

Maximum switch rating: 1-500MA/1.5-2.4VDC

Electrical life endurance: >1,000,000 cycles

Contact resistance: 300mΩ max.(measured 45° tilt)

Switch Angle: 15°~45°

Operating temperature: -10℃±100℃.

Solder ability of terminal: 260℃ - 5 seconds/360℃ - 3 seconds

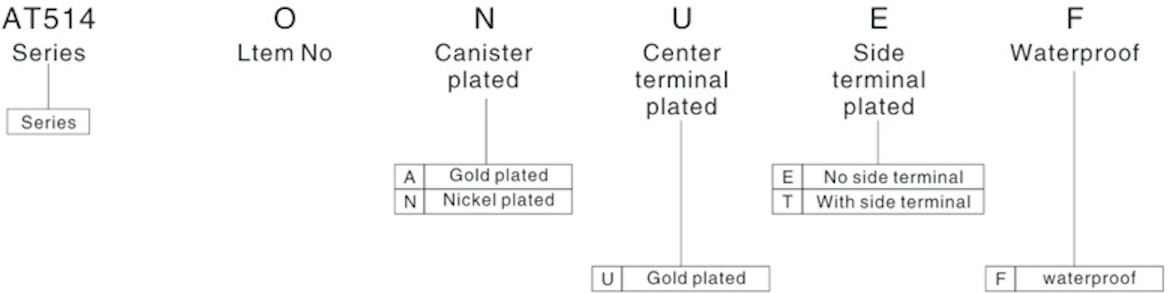

Coding rule

Dimension

Switch function options.

Item No	Picture	Dimension	Vibration position
			ON	OFF
AT514 BT514 (Au/Ni canister)
AT514-3 (Au canister)
BT512 (Ni canister)
AT411 BT411 (Au/Ni canister)
AT4112 (Au canister)
AT411-R2 (Au canister)
BT511 (Ni canister)
AT407 BT407 (Au/Ni canister)
BT507 (Ni canister)
806 (Ni canister)
813 (Ni canister)
