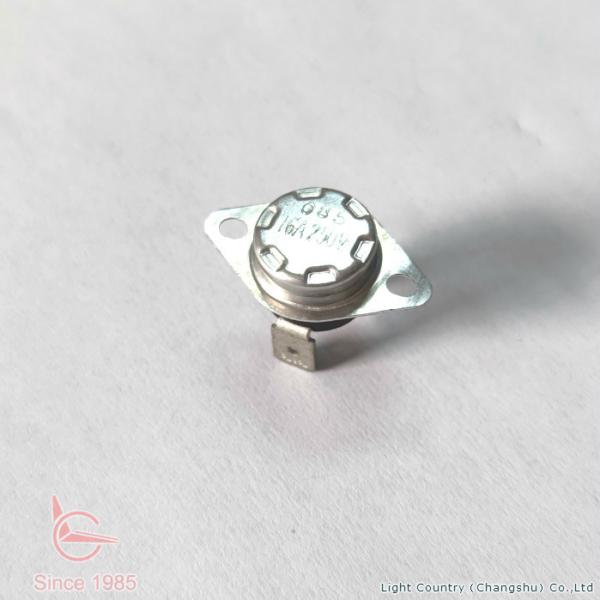

Taiwan Company Light Country KSD301 Bimetal Thermostat Bakelite
case Fixed bracket for Home Appliance
We're Taiwan brand Light Country. This KSD301 Bimetal Thermostat is
for home appliance, with bakelie case and fixed bracket.
1. Why choose KSD301 Bimetal Thermostat?
1) Hight precision, high sensitivity, rapid heat transmission, for
excellent temperature control.
2) All bimetal thermostats will be tested before shipping, high
pass rate.
3) Easy mounting.
4) Many choices for components used on bimetal thermostat, could
support customer for customized production.
2. Parameters and Specification.
| Brand | Light Country |
| Product | KSD301 Bimetal Thermostat |
| Type | Automatic Reset |
| Electrical Rating | 10A 250V |
| Operating Temperature | 0℃~180℃ |
| Differential | 8℃ or more(depend on customer's demand) |
| Endurance | 100,000 cycles |
| Bracket | Fixed bracket |
| Case | Bakelite |
| Circuit Resistance | 50mΩ or less |
| Insulation Resistance | 100MΩ or more(DC 500V) |
| Dielectric Strength | AC 1,450V for 1 minute |
| Application | Household |
When using thermostat, recommend to choose following wires
considering rated current:
| Rated current | ≤3A | ≤5A | ≤7A | ≤12A |
| Traverse area | 0.3 mm² | 0.5 mm² | 0.75 mm² | 1.25 mm² |
| UL wire gauge | AWG22 | AWG20 | AWG18 | AWG16 |
| Rated current | ≤15A | ≤20A | ≤30A | -- |
| Traverse area | 2.0 | 3.5 | 5.5 | -- |
| UL wire gauge | AWG14 | AWG12 | AWG10 | -- |
3. Common specifications could be chosen. Please refer to below data. Kindly share the detail demand such as
action/reset temperature, bracket, terminal types... with us. We
will support customized production for you.
4. Attentions about KSD301 bimetal thermostat installation.
1) During bimetal thermostat using process, need to avoid moisture
and pollution, otherwise it will affect the electrical performance
of the product. Recommended bimetal thermostat working environment
is that relative humidity ≤90%, no contact with corrosive and
flammable things.
2) During installation, need high attention that the
temperature-sensitive surface should not be deformed, and the top
of the cap should not be collapsed or deformed, so as not to affect
the temperature performance and electrical performance of the
product.
3) During using process, need high attention to avoid cracks caused
by the large force on the case inside, and liquid penetrates into
the thermostat. Keep the case clean to prevent the insulation
performance from decreasing or even short circuit breakdown after
the thermostat polluted by the conductive medium.
5. About us.
Light Country Co., Ltd. was founded in 1985 in Taiwan.
We dedicate on KSD301 Thermostat and Rocker switch.These parts are
widely used in household appliance, electrical products, office
equipment, industrial facilities, medical devices and so on. They
could be customized designed based on end-customer's demand.
To provide customer best service, we’re with integration of
R&D, production, sales and post-sales as well.
We've got ISO9001, ISO14001, CQC, UL/CUL, VDE, TUV, SEMKO, NEMKO
certificate, comply with ROHS/REACH regulations.
